Étendoir plafonnier à manivelle
A wider ceiling-mounted drying system for everyday clothes, sheets and larger laundry. Raise or lower the entire airer by hand, without electricity.
- DESIGN DE PLAFOND PEU ENCOMBRANT: L’étendoir de plafond à manivelle EaseRack garde l’espace de séchage hors du sol — idéal pour les balcons, les buanderies et les logements compacts où chaque centimètre compte.
- CHARGE NOMINALE JUSQU’À 50 KG (INSTALLATION CORRECTE REQUISE): Capacité nominale jusqu’à 50 kg lorsqu’il est correctement installé avec des ancrages adaptés et utilisé dans la limite prévue. Pour les articles volumineux comme les couettes, répartissez le poids uniformément sur les barres.
- RÉGLAGE DE HAUTEUR PAR MANIVELLE (0–1.8 m): Abaissez l’étendoir pour un chargement facile, puis remontez-le pour le séchage. La sensation d’utilisation peut varier selon l’installation, la répartition de la charge et la structure du plafond.
- DÉTAILS DE SÉCHAGE DU QUOTIDIEN: Les trous coupe-vent pour cintres sont conçus pour aider à réduire le glissement lors des journées venteuses. La capacité réelle dépend de la taille des vêtements, de l’épaisseur du tissu et de l’espacement des articles.
-
REMARQUES D’INSTALLATION: Le montage au plafond nécessite généralement un perçage, et la quincaillerie appropriée dépend de votre type de plafond (béton, bois, plaque de plâtre, etc.). Largeur minimale d’installation : 90 cm ; pour des plafonds de plus de 3 m, des câbles en acier plus longs peuvent être nécessaires.

Multi-Rod vs Extra-Wide
Choose Multi-Rod for a more compact installation. Choose Extra-Wide for a wider, more adjustable drying layout.
![]()
Séchoir à linge à treuil manuel | ![]()
Étendoir plafonnier à manivelle | |
|---|---|---|
| Main-rod spacing | Approx. 49 cm | Approx. 62 cm |
| Recommended clear balcony width | Approx. 95 cm+ | Approx. 1.1 m+ |
| Lower drying rods | Fixed layout | Multiple spacing positions, approx. 11–36 cm |
| Frame structure | Standard layout | Additional end connecting plates |
Compare the Drying Layouts
Multi-Rod uses approximately 49 cm main-rod spacing for a more compact layout, while Extra-Wide uses approximately 62 cm spacing for a wider drying layout.

Mulit-rod

Extra-wide

11–36 cm Adjustable Spacing
Choose from multiple spacing positions between approximately 11 and 36 cm to suit sheets, duvet covers and other larger items.
The lower rods can also be folded upward when they are not needed.
Will It Fit My Space?
Check the main installation requirements before ordering.
- Recommended clear balcony width: approximately 1.1 m or more
- Main-rod spacing: approximately 62 cm
- Wall space for the hand crank: approximately 30 cm or more
- Standard ceiling height: up to approximately 3 m
- Maximum lowering distance: approximately 1.8 m
- Ceiling suspension points: 4
- Corner guide: 1 separate fixing point
- Ceiling structure: secure fixing to a suitable load-bearing structure is required
For ceilings above approximately 3 m, contact EaseRack before ordering to confirm the required extended wire-rope length. The standard hand crank can still be used.

Feature name
Share useful information about your product features.
Feature name
Share useful information about your product features.
Feature name
Share useful information about your product features.

A Wider Layout for Clothes and Bedding
62 cm Main-Rod Spacing
The two main rods are spaced approximately 62 cm apart, creating a wider layout with more separation between the different drying areas.
Separate Lower Drying Rods
Two lower drying rods provide dedicated space for sheets, duvet covers and other larger laundry.
Use Different Drying Areas Together
Everyday clothes can remain on the hanger holes and crossbars while the lower rods are used for larger laundry.
When the lower rods are not needed, they can be folded upward to keep the main hanging area easier to access.
Where to Hang Different Laundry
Hanger Holes
For shirts, jackets and everyday garments on hangers.
Crossbars
For smaller laundry and additional drying space.
Lower Drying Rods
For sheets, duvet covers and other larger laundry while the upper hanging areas remain available for everyday clothes.
The two lower rods fold upward when not in use.
Choose the Right Length
Both sizes use the same overall structure. Choose the length based on your available installation space and the number of hanging positions you need.
| Length | Hanger Holes | Crossbars |
|---|---|---|
| 2.0 m | 24 | 12 |
| 2.4 m | 30 | 15 |

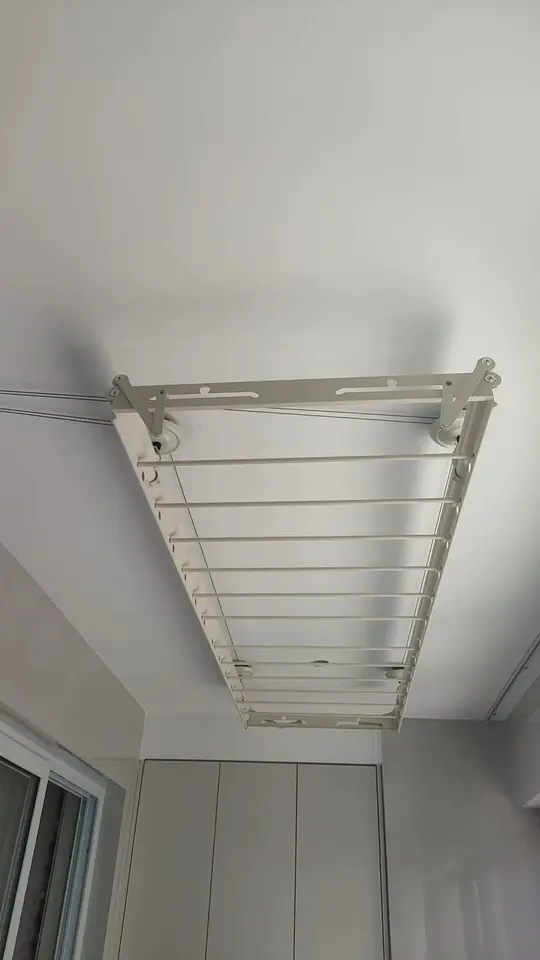

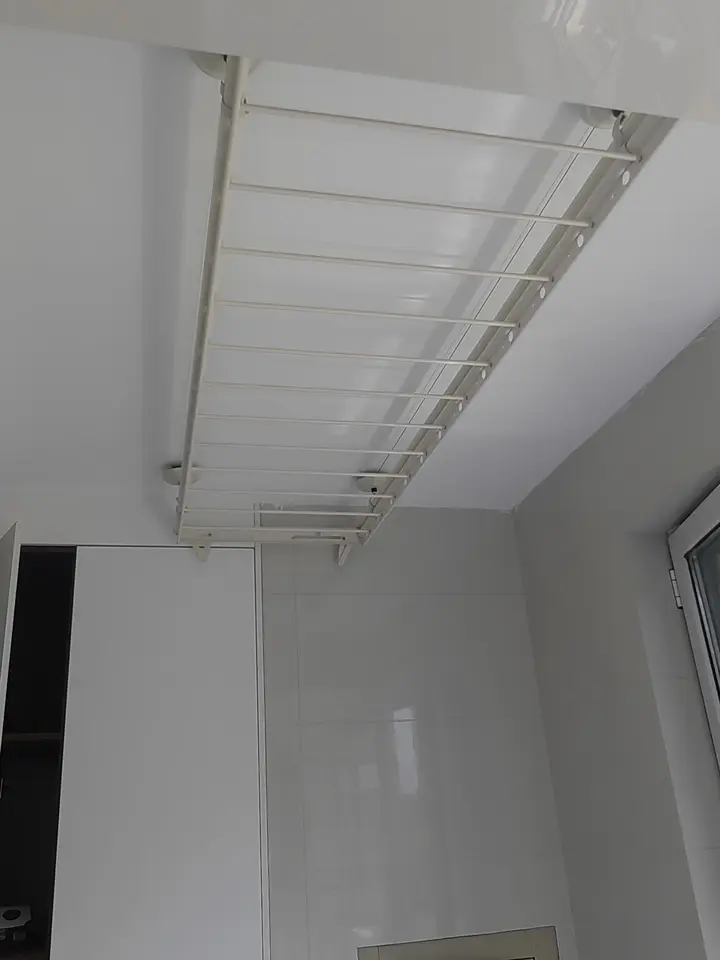

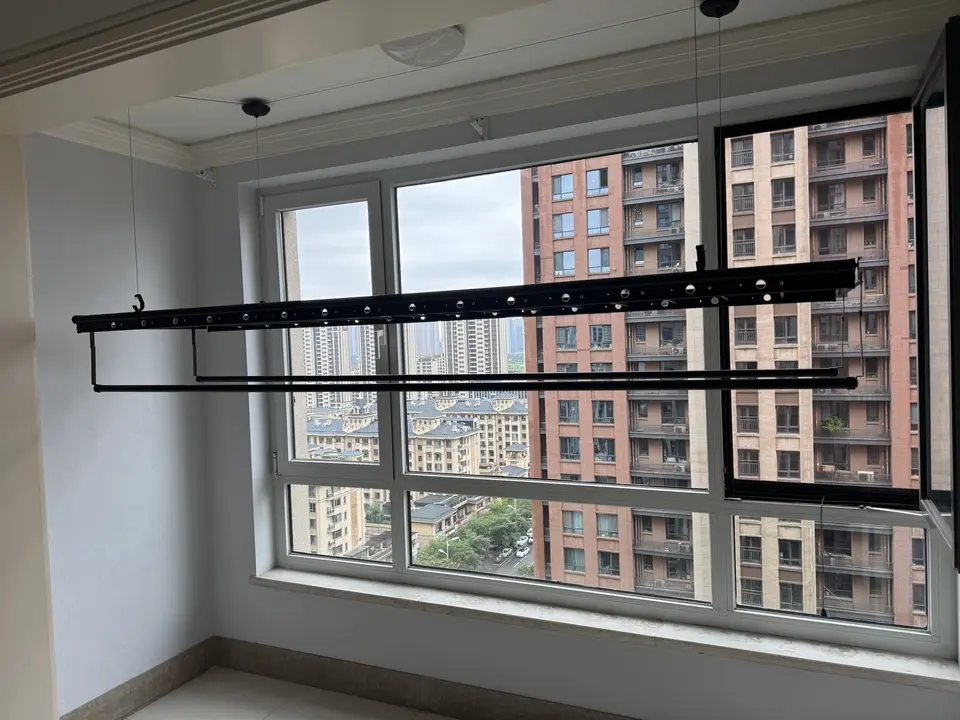

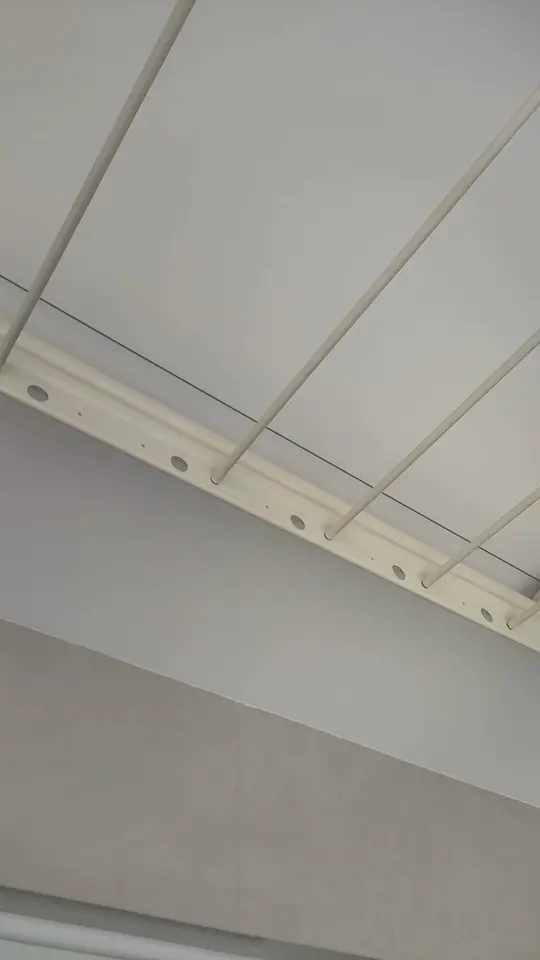

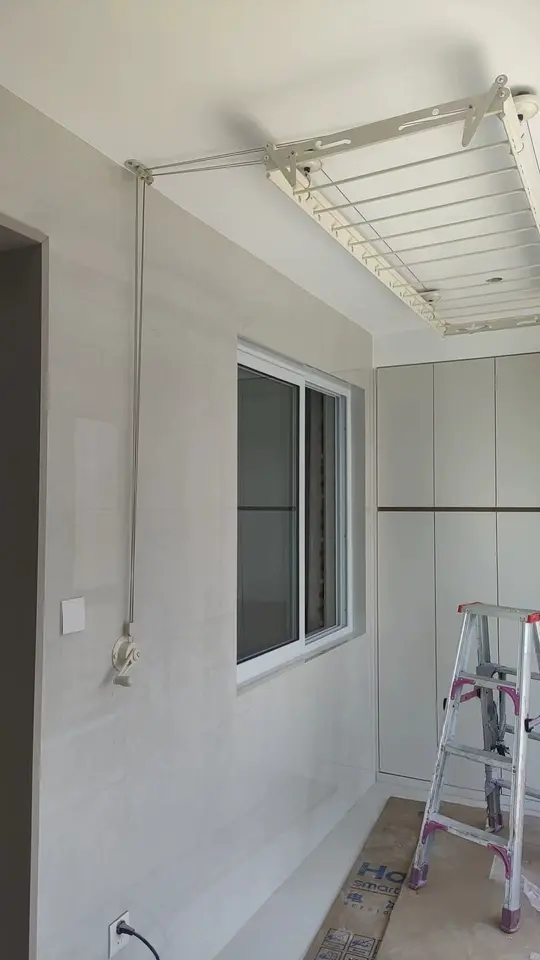

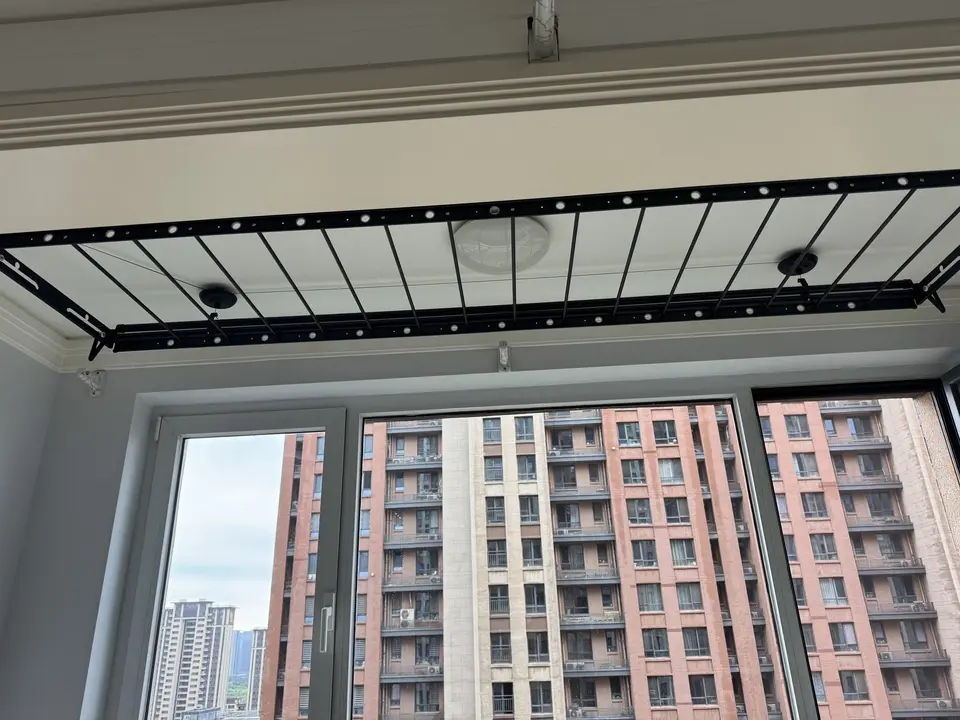

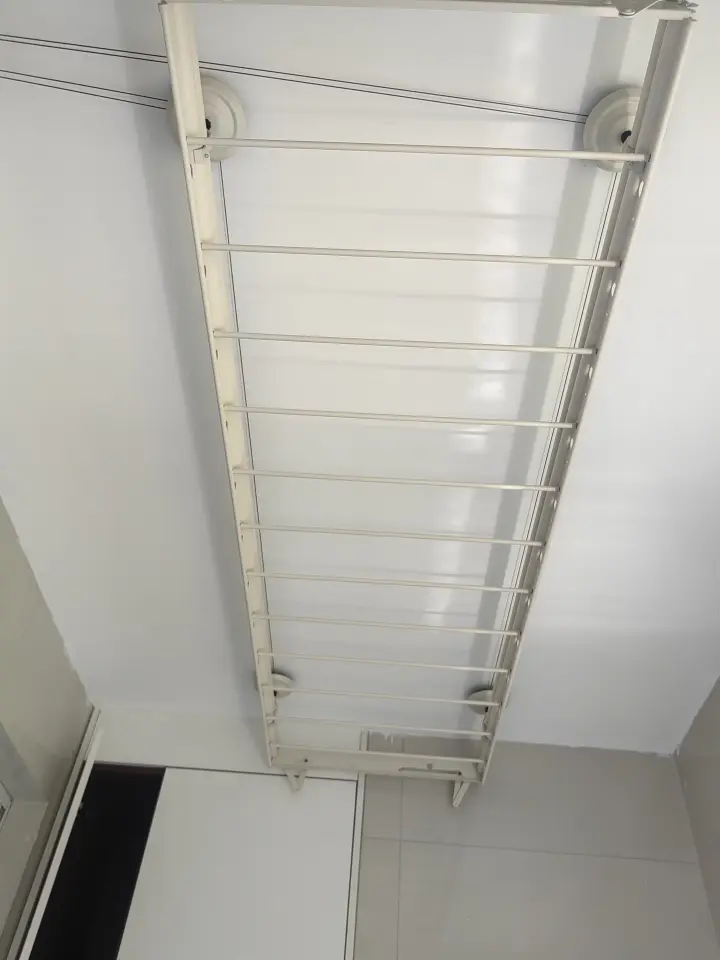

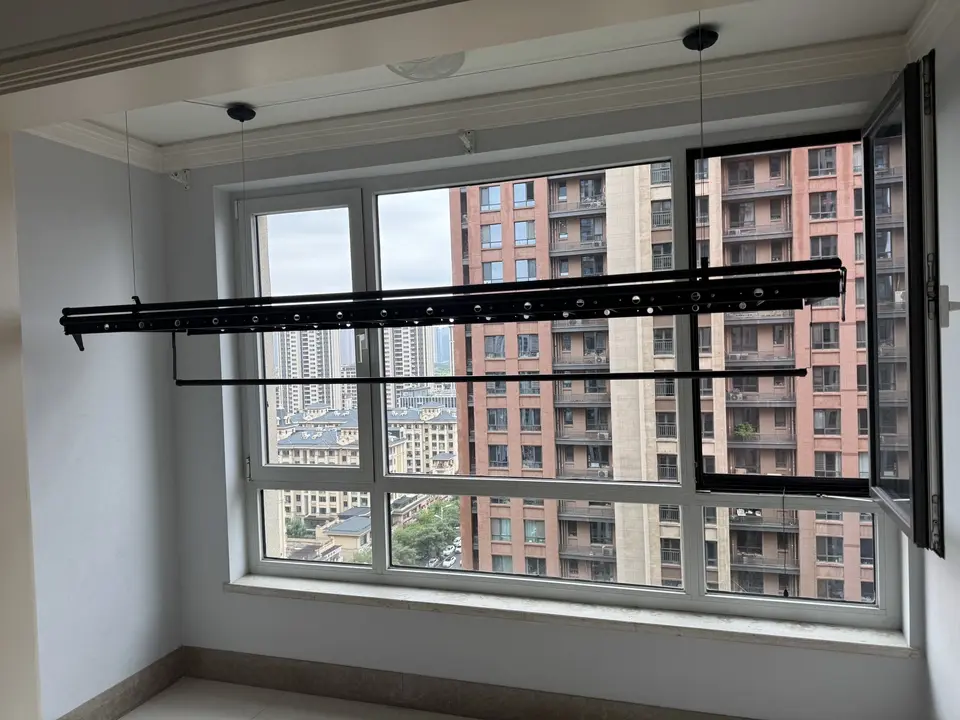

Inspirez-vous de nos clients
See how the Extra-Wide Ceiling Clothes Airer fits into real home laundry spaces.
How the Manual Lifting System Works
Easy Manual Height Adjustment
Turn the wall-mounted hand crank to raise or lower the entire airer, then stop at your preferred height. The self-locking mechanism holds it in position.
Maximum lowering distance: approximately 1.8 m.

Vous pouvez l'installer sur :
The airer must be anchored to a suitable load-bearing structure. Plasterboard or decorative ceiling panels alone are not suitable fixing points.

Plafond en plâtre

Plafond de véranda

Plafond en bois

Plafond intégré
Frequently Asked Questions
How much space do I need for installation?
We recommend a clear balcony width of approximately 1.1 m or more. You also need approximately 30 cm or more of suitable wall space for the hand crank and a clear route for the wire ropes around the corner guide.
The standard configuration is suitable for ceiling heights up to approximately 3 m.
What is the difference between the 2.0 m and 2.4 m versions?
Both sizes use the same overall structure.
- 2.0 m: 24 hanger holes + 12 crossbars
- 2.4 m: 30 hanger holes + 15 crossbars
Choose according to your available installation length and the number of hanging positions you need.
Can I dry clothes and larger laundry at the same time?
Yes. Everyday clothes can be hung from the main rods and crossbars while the two lower drying rods provide separate space for sheets, duvet covers and other larger laundry.
Does the whole airer move together?
Yes. The complete airer rises and lowers together through the four ceiling suspension points. Individual rods cannot be moved independently.
What if my ceiling is higher than 3 m?
For ceilings above approximately 3 m, contact EaseRack before ordering to confirm the required extended wire-rope length.
The standard hand crank can still be used.
What types of ceilings are suitable?
The airer must be securely fixed to a suitable load-bearing structure.
Plasterboard, drywall, suspended or modular ceilings are suitable only when the fixing can reach a suitable load-bearing structure behind or above the visible ceiling surface.
